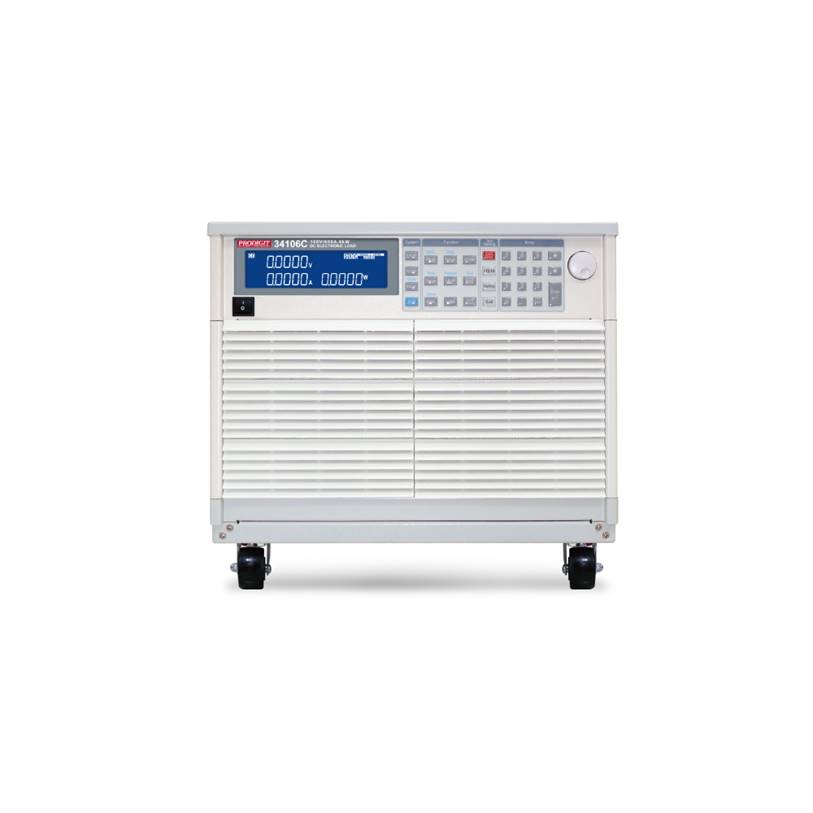

34106C
Compact High Power DC Electronic Load 150V, 600A, 6KW
Description
l
34000C Series has its own control and display panel, CC /
CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides
load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and
LAN interface.
l
SHORT time setting and SHORT_VH,
SHORT_VL setting function, also can measure Short
Voltage and Current.
l
Dynamic can be simulated under CC, CP mode. The current
Rise / Fall slew rate can be adjusted individually and there is an external
signal input for a Arbitrary
Waveform to simulate load current.
l
Single key for OCP、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
l
Programmable Load ON/OFF voltage, GO/NG meter check,
Voltage meter display ” + “ or “ – “ is selectable and 150 sets
Store/Recall larger memory is much advance feature for each different
application.
l
150 sets test parameter and status storage function, user
can recall the storage memory real time in accordance with the auto sequence
requirement.
l
Maximum Voltage up to 1200V provide an idea testing
solution for Power Factor Correction test.
l
Master / Slave control units maximum up to 1 MASTER, 7
SLAVE.
Features
l
With parallel
function maximum power up to 192KW.
l
Maximum up to 8
units master / slave parallel control.
l
5
digit V/A/W Meter.
l
High-speed
measurement and communication transmission.
l
Large LCD Display、setting values can be adjusted by rotary knob or push button.
l
Voltage、Current and Watt value can be displayed simultaneously.
l
Capable for Power
Factor Correction (PFC) Test. ( for 600V, 1200V models
)
l
OCP、OPP test function
automatically.
l
Power ON status can
be set.
l
CC, CR, CV, CP , CC+CV , CP+CV
, Dynamic and Short operation mode.
l
SHORT time setting.
l
Protections against I,W,°C and over-voltage alert.
l
Voltage meter
display the polarity positive（”＋”）or negative（”－”）is
selectable.
l
Optional Interface :
GPIB、RS232、USB、LAN.
l
Built-in soft-start
circuit function allowing the U.U.T. power supply to
be directly connected to the 342xC、343xC
series load input terminal, no longer need a large relay switch with an
external soft-start circuit.
l
New waveform
generator plug in model 9923 adds user programmable
battery discharge current waveform simulation to Prodigit
DC Loads.

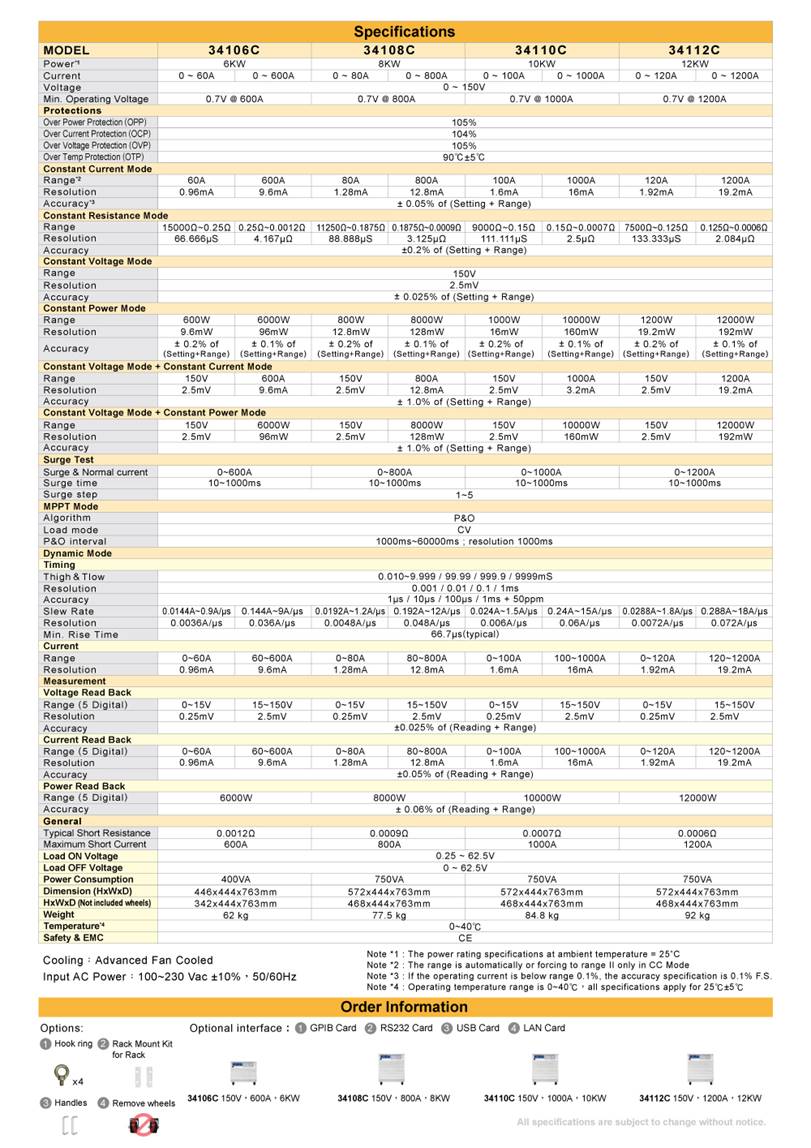

Specifications
